Turn on the light – and relax

LED illumination in the shower as a source of wellness

Escape to the tropics? A monsoon shower head with colourful wall panel illumination, e.g. in green, will bring a sense of adventure to your bathroom. Perhaps you prefer bright light in the morning to start your day with a sense of refreshment? In that case, simply set the seamless colour control of your LED illumination to white. After a long day, nothing could be more relaxing than a shower with warmer hues of red and orange.

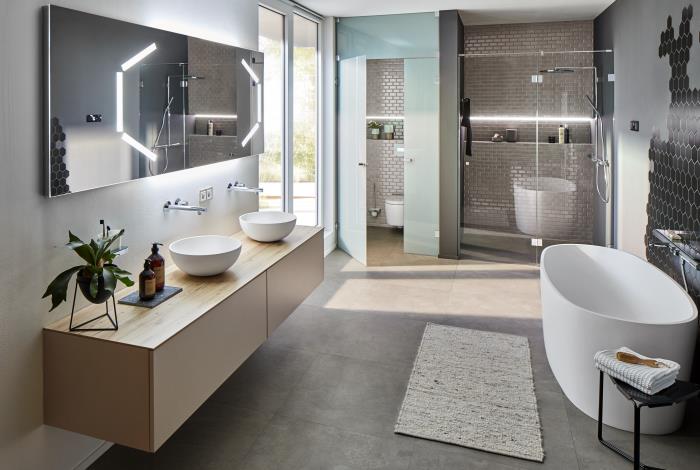

To create more light in showers, install illuminated niches for accessories or lines of light in wall and ceiling or in corners. Turn the remainder of the bathroom into a wellness landscape: The bathtub appears to float with indirect LED illumination and the cove lighting makes the room appear larger.

All LIPROTEC products are protected against splash water and conform to either IP65 or IP67, making them ideally suited for use in wet rooms. Our PLAN section shows which products you can use in showers and wetrooms. It includes a list of all products with technical information and application areas, clearly explained with icons.

At a glance:

  • Waterproof LED profiles for showers (IP 65/IP 67)
  • Illuminated niches for integrated storage
  • Wake up or relax: seamlessly adjust the light to your mood
  • Central control for shower, bath, features and mirror lighting
  • Plug & play connection system or components for professional assembly



Requirements? Fully met!

Lighting in bathrooms and related spaces

Wet room regulations

Bathrooms are classified as wet spaces. Certain protective measures must therefore be taken into account for light design. These are specified for the UK in the IIE Wiring Regulations – latest Edition and European standard DIN VDE 0100 Part 701 for bathrooms.

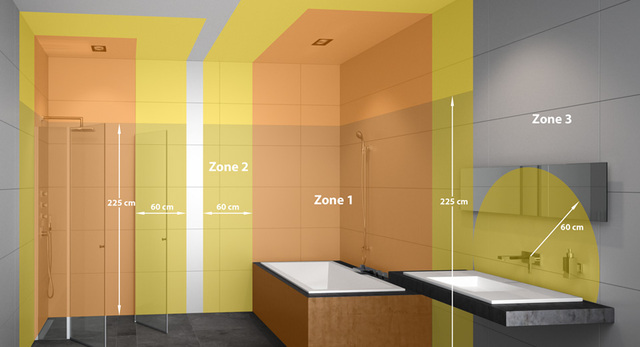

This standard distinguishes three protection areas:

Zone 0

Includes the interior of bathtubs and shower trays. Any fitting used in this zone must be low voltage, (max 12v) and be rated at least IP67 which is total immersion proof. The LIPROTEC illumination system wiring 24v. Accordingly, Zone 0 the LIPROTEC system is not suitable.

Zone 1

Is defined as the vertical area of the bathtub or shower to a height of 225cm from the floor. In this zone a minimum rating of IP45 is required but it is generally accepted that IP65 is to be used.

In both cases, this limitation extends from the finished floor to a height of 225 cm. If the showerhead or the water outlet is higher than the horizontal line of 225 cm, the upper height must be assumed as the limit.

Zone 2

Extends from Zone 1 horizontally for a minimum of 60 cm from the perimeter of the bath or shower and to a height of 2.25m from the floor. The lights installed in Zone 1 and 2 must at a minimum comply with protection class IP 64 (protection against splash water from all directions).  In addition it is good practice to consider the area around a wash basin, within a 60 cm radius of any tap to be considered as Zone 2. If there is a possibility of water jets, for example from massage jets, protection class IP 65 (protection against water jets from all directions) is required at a minimum. Our LED strips conform to IP 65.

In all instances the power supplies for LIPROTEC must be located outside of Zones 1 and 2.

Light in the shower? - Not a problem!

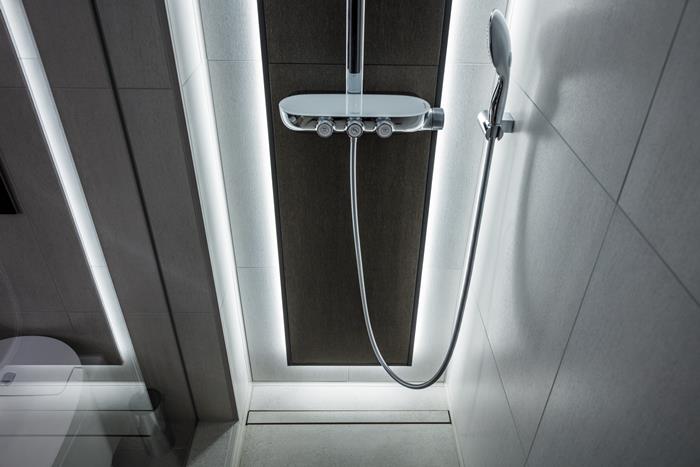

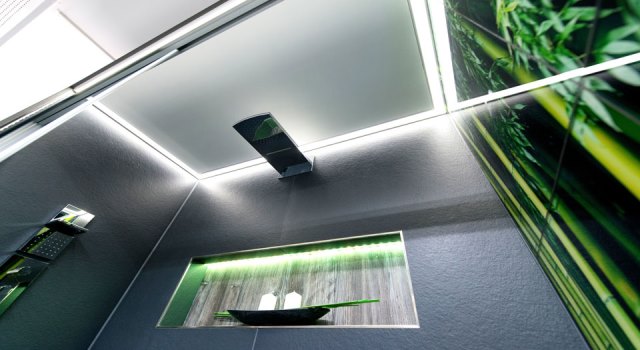

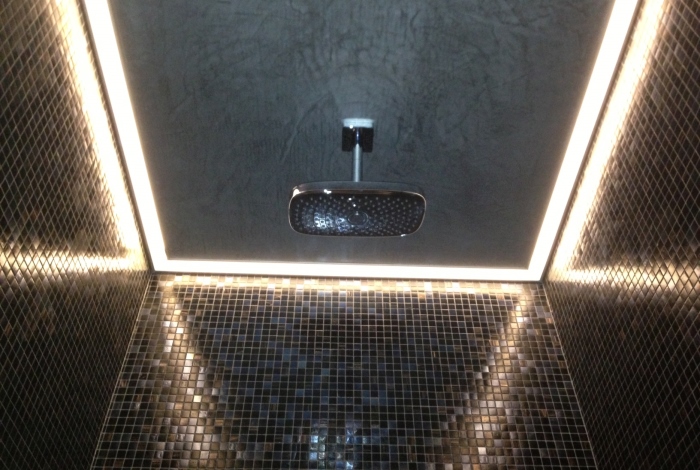

With Schlüter-LIPROTEC, you can install LED bathroom lighting even within the shower and wetroom space. Both the illuminated frame in the upper area and the niche installed in the wall are equipped with LED strips.
  • Schlüter®-LIPROTEC-LLPM

    Schlüter®-LIPROTEC-LLPM

    Schlüter-LIPROTEC-LLPM are plug & play LED modules made from a flexible, fully coated LED tube with homogeneous light distribution and an attachment profile made of aluminium or stainless steel with a trapezoid-perforated anchoring leg.

    Go to product
  • Schlüter®-LIPROTEC-LLPE

    Schlüter®-LIPROTEC-LLPE

    Schlüter-LIPROTEC-LLPE are LED modules made from a flexible, fully coated LED tube with homogeneous light distribution and an attachment profile made of anodised aluminium.  The LED module is designed to create accent lighting in wall corners. It is suitable for use in internal and external corners, preferably in vertical alignment.

    Go to product
  • Schlüter®-LIPROTEC-LLP

    Schlüter®-LIPROTEC-LLP

    Schlüter-LIPROTEC-LLP are LED modules made from a flexible, fully coated LED tube with homogeneous light distribution and a U-shaped attachment profile made of aluminium.

    Go to product
  • Schlüter®-LIPROTEC-LL

    Schlüter®-LIPROTEC-LL

    High-quality, anodised aluminium support profile for creating accent lighting in wall coverings, niche or shelf designs and elements.

    Go to profile
  • Schlüter®-LIPROTEC-LLE

    Schlüter®-LIPROTEC-LLE

    High-quality support profile made of anodised or white coated aluminium for the attachment of Schlüter-LIPROTEC-ES LED strips. The profile is designed to create accent lighting in wall corners.

    Go to profile
  • Schlüter®-LIPROTEC-WS/-WSQ

    Schlüter®-LIPROTEC-WS/-WSQ

    Support profile made of anodised aluminium for illuminating protruding wall panels.

    Go to profile
  • Schlüter®-LIPROTEC-WSK

    Schlüter®-LIPROTEC-WSK

    Support profile made of anodised aluminium for illuminating protruding wall panels.

    Go to profile
