Lines of light for flush finish to the tile

Schlüter®-LIPROTEC-LLPM

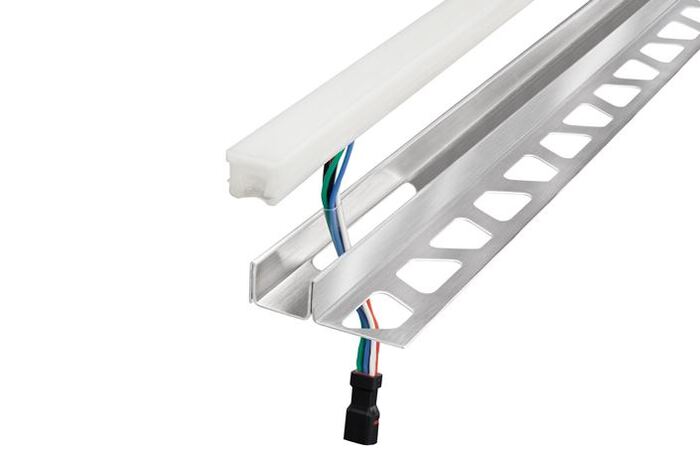

Schlüter-LIPROTEC-LLPM are ready-to-use LED modules made from a flexible, fully coated LED strip with homogeneous light distribution and a profile made of aluminium or stainless steel with a trapezoid-perforated anchoring leg. The LED modules are either available with fixed colour temperatures of 3200 K or 4900 K in the white light range or in the colour light range RGB+W. The latter enables over 16 million different colour and colour temperature combinations from 2500 K to 6500 K. The white LED module is available in the assembly height 11 mm for flush installation in the full thickness of the tile.

Schlüter®-LIPROTEC-LLPM

Plug & play LED modules

Available material:

  • anodised aluminium
  • brushed stainless steel V4A

Available light colours:

  • warm white
  • neutral/cool white
  • RGB+W

Available lengths (in cm):

  • 50
  • 100
  • 200
  • 250

Technical data of supplied LED modules:

LLPM1 (warm white)

  • LED dimensions (W x H): 12 x 10,5 mm
  • Watt/m: 5
  • LED/m: 280
  • Colour temperature (Kelvin): 3000 K
  • CRi: 92
  • Can be shortened every 25 mm

LLPM2 (neutral/cool white)

  • LED dimensions (W x H): 12 x 10,5 mm
  • Watt/m: 5
  • LED/m: 280
  • Colour temperature (Kelvin): 4900 K
  • CRi: 92
  • Can be shortened every 25 mm

LLPM9 (RGB+W)

  • LED dimensions (W x H): 17 x 14.5 mm
  • Watt/m: 15
  • LED/m: 112
  • Colour temperature (Kelvin): RGB+W (2700 K)
  • CRi: 85
  • Can be shortened every 62.5 mm

Note: max. length of the aligned LED modules in the LIPROTEC-EASY System: LLPM 9 = 6 m, LLPM 1+2 = 18 m

Available accessories:

Schlüter-LIPROTEC-LLPM/EK are end caps for a neat finish of LED plug & play sets. They are available in a right and a left version. The joint spacer is embedded in the tile adhesive.

  • End cap, anodised aluminium 12 mm
  • End cap, anodised aluminium 15 mm
  • End cap, brushed stainless steel V4A 12 mm
  • End cap, brushed stainless steel V4A 15 mm

Note: end caps in a width of 12 mm fit white LED modules. End caps in a width of 15 mm fit LED modules in RGB+W.
