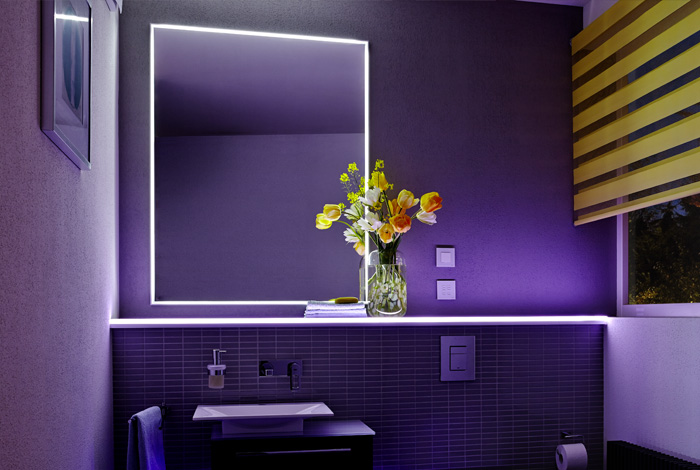

Nothing overlooked: our complete sets for your illuminated mirrors

Decorative frame sets

What materials are needed to illuminate a mirror? Quite simple: everything but the glass mirror is what's included in our sets! The sets contain all components you need for installing a mirror with illumination, in one convenient package.

You can choose between sets for illuminated mirrors with frames and sets for back-lit, frameless variants. What's more, we also offer optional control technology for the LED lighting. The Schlüter-LIPROTEC system also includes matching receivers and switches. Depending on the design, lighting can be controlled with radio receivers, switches or smart control with Bluetooth via a smartphone or tablet.

The following sets are available:

  • Schlüter-LIPROTEC-D 90 S1
    Complete set for decorative frame with warm white, indirect lighting
  • Schlüter-LIPROTEC-D 90 S2
    Complete set for decorative frame with neutral/cool white, indirect lighting



Content of Schlüter®-LIPROTEC-D 90 S1

(for mirrors or decorative elements* with a thickness of up to 6 mm)

  • 1 profile frame Schlüter-LIPROTEC-D 90, 118.5 cm x 93.5 cm, incl. mitre cuts and milled edges for decorative material support incl. Schlüter-LIPROTEC-D/V corner connector
  • 2 x LED strips, Schlüter-LIPROTEC-ES, length: 110 cm, warm white 3300 Kelvin
  • 2 x LED strips, Schlüter-LIPROTEC-ES, length: 85 cm, warm white 3300 Kelvin
  • 1 x set of decorative material supports, above/below (4 pcs.)
  • 1 x set of mirror plates, above/below (4 pcs.)
  • 1 x Schlüter-LIPROTEC-ZS connection set
  • 1 x conduit, 200 cm, 20 mm diameter
  • 1 power supply 24 V, 50 W
  • 1 x installation/mounting instruction
  • 1 x installation tool/mounting aid

* Mirror/decorative element not included in scope of supply

Content of Schlüter®-LIPROTEC-D 90 S2

(for mirrors or decorative elements* with a thickness of up to 6 mm)

  • 1 profile frame Schlüter-LIPROTEC-D 90, 118.5 cm x 93.5 cm, incl. mitre cuts and milled edges for decorative material support incl. Schlüter-LIPROTEC-D/V corner connector
  • 2 x LED strips, Schlüter-LIPROTEC-ES, length: 110 cm, neutral/cool white 4500 Kelvin
  • 2 x LED strips, Schlüter-LIPROTEC-ES, length: 85 cm, neutral white 4500 Kelvin
  • 1 x set of decorative material supports, above/below (4 pcs.)
  • 1 x set of mirror plates, above/below (4 pcs.)
  • 1 x Schlüter-LIPROTEC-ZS connection set
  • 1 x conduit, 200 cm, 20 mm diameter
  • 1 power supply 24 V, 50 W
  • 1 x installation/mounting instruction
  • 1 x installation tool/mounting aid

* Mirror/decorative element not included in scope of supply

Please note! Decorative element dimensions (e.g. mirror): 115.3 cm x 90.3 cm (10 mm illuminated joint) Decorative element weight: max. 16 kg

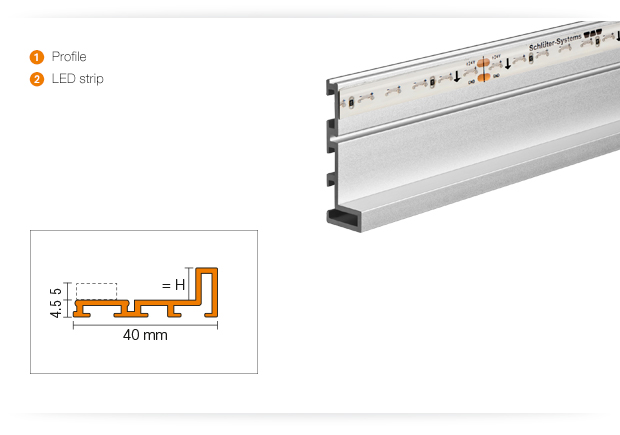

Schlüter-LIPROTEC-D
